Insulated Glass

Wintenic:A professional insulated glass manufacturer, specializing in premium windows,doors and glass designed for energy efficiency and lasting elegance.
  • Tempered Glass; Laminated Glass

  • Common air; Argon

  • Powder Coated ; PVDF

  • 5-30mm

  • 6-30mm

  • 500000m2/year

  • 0.76-2.28mm

  • Customization

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

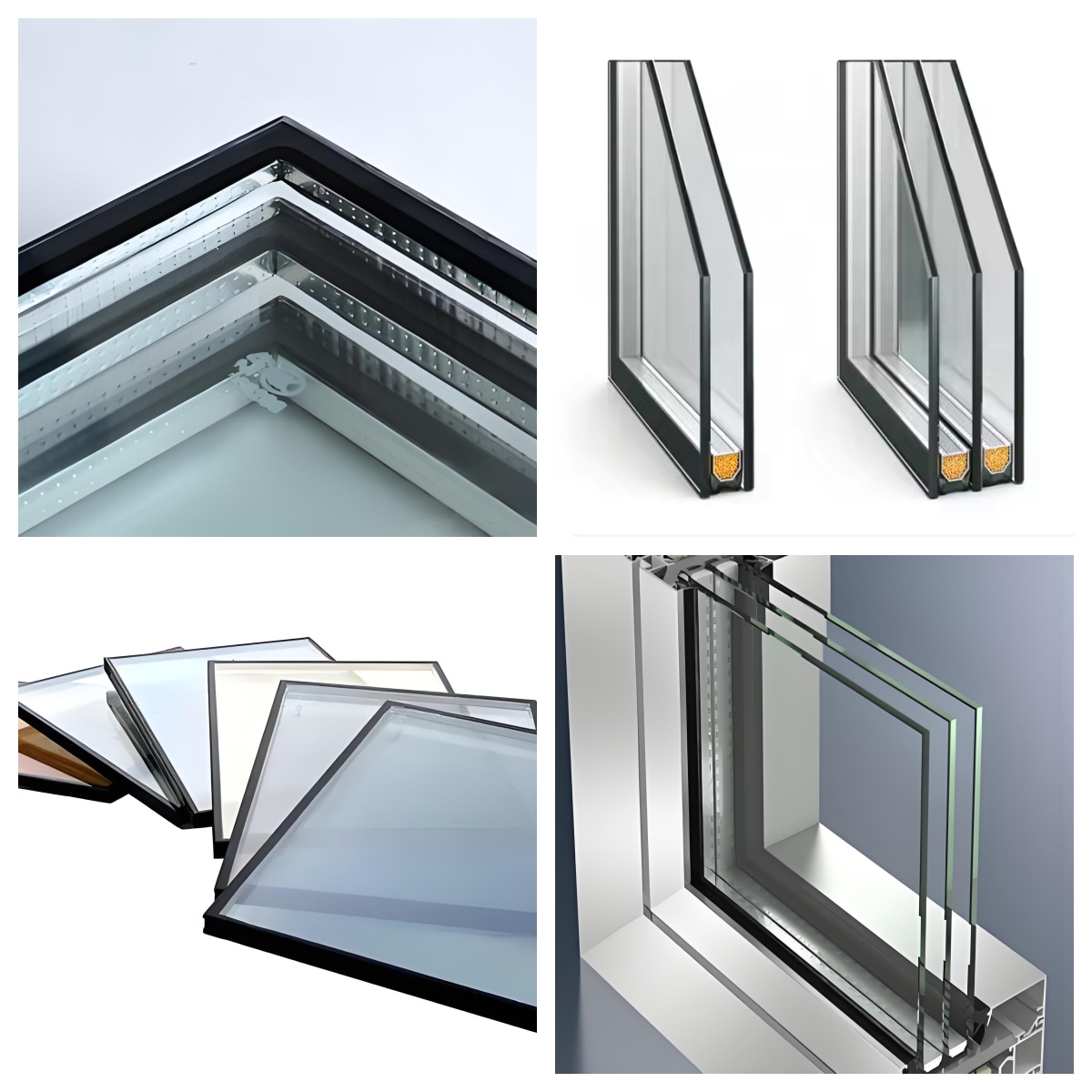

1. Show case of Wintenic Insualted Glass

Insulated Glass



2. The Advantages of Wintenic Insualted Glass

These advantages make Wintenic insulated glass an excellent choice for both residential and commercial applications, contributing to energy savings, comfort, and aesthetics.


Energy Efficiency:


Insulated glass helps reduce energy loss, keeping homes warmer in winter and cooler in summer. This can lead to significant savings on heating and cooling costs.


Noise Reduction:


The air space between the glass layers acts as a buffer, reducing noise from outside. This is especially beneficial in noisy urban areas.


Condensation Control:


Insulated glass minimizes condensation build-up on the interior surfaces, reducing the risk of mold and water damage.


UV Protection:


Many insulated glass options include coatings that block harmful UV rays, protecting furnishings and flooring from fading.


Improved Comfort:


By maintaining a consistent indoor temperature, insulated glass enhances overall comfort in living spaces.


Enhanced Security:


Double or triple glazing makes it more difficult for intruders to break through, adding an extra layer of security to your home.


Environmental Benefits:


Reducing energy consumption lowers the carbon footprint of a home, contributing to environmental sustainability.


Customizable Options:


Wintenic insulated glass can be tailored with different coatings, tints, and thicknesses to meet specific aesthetic and performance needs.


Durability:


High-quality insulated glass is designed to withstand harsh weather conditions and resist impacts, ensuring long-lasting performance.


Increased Property Value:


Installing insulated glass windows and doors can enhance the value of a property by improving energy efficiency and overall appeal.


3. Classification of Wintenic Insulated Glass

Wintenic's insulated glass can be classified based on several criteria, which can help clarify product offerings and assist customers in making informed choices. Here are key classifications:

  1. Number of Panes:

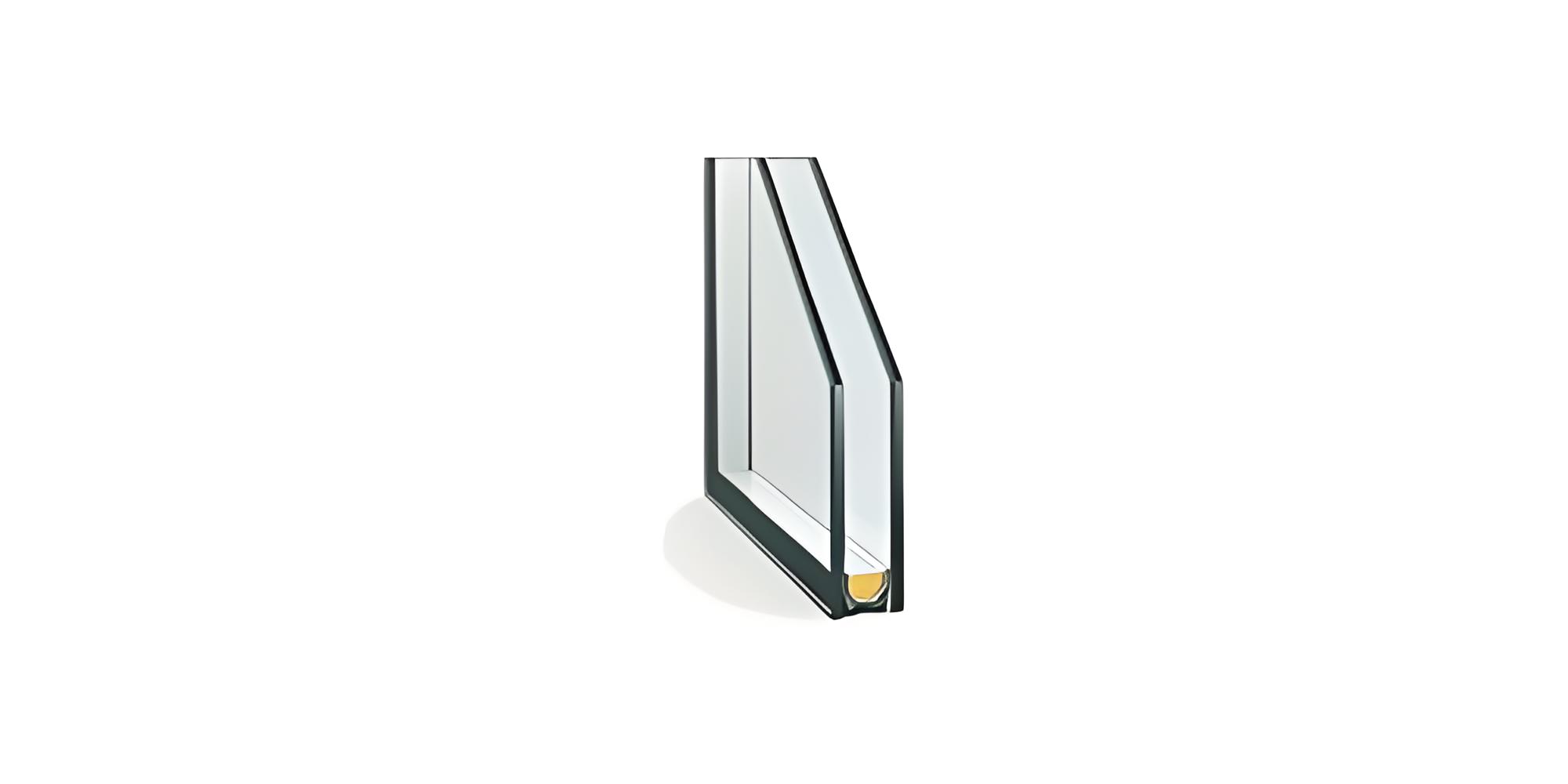

    • Double Glazed: Consists of two panes of glass with a spacer in between, providing good insulation and energy efficiency.

    • Triple Glazed: Features three panes of glass, offering superior insulation and soundproofing, ideal for extreme climates.

  2. Spacer Material:

    • Aluminum Spacer: Lightweight and cost-effective, commonly used but less efficient in thermal insulation.

    • Warm Edge Spacer: Made from materials like foam or polymer, providing better thermal performance by reducing heat transfer.

  3. Gas Fill:

    • Air-Filled: Uses regular air between the panes, offering basic insulation.

    • Argon or Krypton Gas-Filled: Inert gases used for improved thermal performance, reducing heat transfer compared to air-filled units.

  4. Low-E Coating:

    • Standard Low-E: Reflects infrared light to improve energy efficiency while allowing visible light to pass through.

    • High-Performance Low-E: Offers enhanced thermal control and UV protection, ideal for climates with extreme temperatures.

  5. Surface Finish:

    • Clear Insulated Glass: Offers maximum visibility and light transmission.

    • Frosted or Textured Insulated Glass: Provides privacy while still allowing light to enter.

    • Tinted Insulated Glass: Reduces glare and enhances energy efficiency by blocking excess sunlight.

  6. Functionality:

    • Fixed Units: Non-operable windows providing unobstructed views.

    • Operable Units: Windows that can be opened for ventilation, such as casement or sliding windows.

  7. Safety and Security:

    • Tempered Insulated Glass: Offers added strength and safety, reducing the risk of injury if broken.

    • Laminated Insulated Glass: Combines layers of glass with a plastic interlayer for enhanced security and sound insulation.

By classifying Wintenic’s insulated glass products in these ways, you can better communicate their features and benefits, helping customers find the right solutions for their specific needs.



4.The production process for Wintenic Insulated Glass

The production of Wintenic insulated glass (IGU) involves several key steps to ensure durability, energy efficiency, and high quality. Here’s an overview of the typical production process:

1. Glass Cutting and Preparation

  • Glass Selection:The process begins with selecting high-quality glass types (clear, tinted, Low-E, etc.) based on customer requirements.

    • Cutting and Sizing: Large glass sheets are cut into the desired sizes for the insulated glass units (IGUs).


    • Cleaning: Each glass pane undergoes thorough washing to remove dust, oils, and contaminants, ensuring clean surfaces for adhesion.



    2. Spacer Assembly and Filling




      • Spacer Cutting and Assembly: Spacers, usually made from aluminum, stainless steel, or a warm-edge material, are cut to the size of the glass panes and assembled into a frame.


      • Desiccant Filling: A desiccant (drying agent) is added inside the spacer frame to absorb any residual moisture, preventing condensation within the IGU.

      • Spacer Sealant Application: A sealant is applied to the edges of the spacer frame to prevent gas or air leakage.



      3. Assembly of Glass Panes and Spacer




        • Aligning the Glass and Spacer: The cleaned glass panes and spacer are assembled, with the spacer frame positioned between the panes to create an insulating space.


        • Primary Seal: A primary butyl seal is applied around the edges of the glass and spacer frame to secure them together and ensure an initial level of airtightness.



        4. Filling the Insulating Space




          • Gas Filling (if required): In some units, argon, krypton, or another insulating gas is introduced into the space between the panes to enhance thermal performance.


          • Secondary Seal Application: A secondary sealant (e.g., silicone or polysulfide) is applied around the unit’s edges to reinforce the primary seal, creating a robust barrier that protects against air or gas leakage and moisture infiltration.



          5. Quality Control and Inspection




            • Visual Inspection: Each IGU undergoes inspection for cleanliness, seal integrity, and structural quality.


            • Leak and Insulation Testing: Units are tested to ensure they meet insulation, energy efficiency, and leak prevention standards. This may include gas concentration tests to verify the presence of insulating gas and testing for thermal and sound insulation properties.

            • Strength Testing: Some units may undergo pressure or impact tests, especially if tempered or laminated glass is used, to meet safety and durability standards.



            6. Packing and Shipping




              • Labeling: The finished IGUs are labeled with production details, customer specifications, and handling instructions.


              • Packing: IGUs are carefully packed to prevent breakage during transit, using protective materials and shipping frames.

              • Shipping: Units are shipped to the customer’s site for installation in windows, doors, or facades.



              This process ensures that Wintenic insulated glass units meet high performance, energy efficiency, and durability standards, providing reliable solutions for various residential and commercial applications.







              5. Advanced Equipment for Wintenic Laminated Glass


              1. Fully intelligent doors and windows production line

              window and door production line


              2. Tempered Glass Production Line

              Tempered Glass Production Line


              3. Laminated Glass Production Line

              Laminated Glass Production Line


              4. Insulated Glass Production Line

              Insulated Glass Production Line


              6. Wintenic: Crafting Excellence in Windows, Doors and Glass


              Wintenic is a premier manufacturer of high-quality windows, doors and glass, dedicated to enhancing the beauty, security, and energy efficiency of residential and commercial spaces. With a strong commitment to innovation, precision craftsmanship, and customer satisfaction, Wintenic has become a trusted name in the industry.


              Our Products

              Wintenic specializes in a diverse range of products that cater to various aesthetic preferences and functional needs. From sleek, modern designs to timeless classics, our offerings include:


              Windows: Energy-efficient, durable, and designed for maximum light and ventilation. Our window solutions include casement, sliding, hung, and fixed.


              Doors: Offering security, elegance, and reliability, Wintenic's door collection includes casement, sliding and folding, with style of entry doors, patio doors, French doors, and custom solutions tailored to fit any      architectural style.


              Glass: Wintenic has two glass factories with serval glass deep process lines, include tempered glass,      laminated glass, insulated glass, vacuum glass and composite glass.


              Innovation and Sustainability

              At Wintenic, we are at the forefront of technology and sustainability. We employ state-of-the-art manufacturing processes and utilize eco-friendly materials to produce energy-efficient products that reduce carbon footprints. Our windows and doors are engineered to meet the highest standards of thermal insulation, noise reduction, and weather resistance, contributing to sustainable living and long-term energy savings.


              Commitment to Quality

              Every Wintenic product undergoes rigorous quality control, ensuring that it meets stringent industry standards for performance and durability. Our focus on quality extends beyond products to our customer service, providing personalized support from consultation to installation.


              7. Why Choose Wintenic?


              Expert Craftsmanship:

              Our team of skilled engineers and artisans ensures that every product is meticulously crafted to perfection.


              Customization:

              We offer a range of customizable options, allowing customers to choose from a variety of materials, finishes, and configurations.


              Energy Efficiency:

              Our products are designed to help customers save on energy costs while maintaining comfort throughout the year.


              Enduring Design:

              Combining aesthetics with functionality, Wintenic products are  built to last, offering lasting value and timeless appeal.
